เครื่องพันฟิล์มพาเลท รุ่น TP1650F

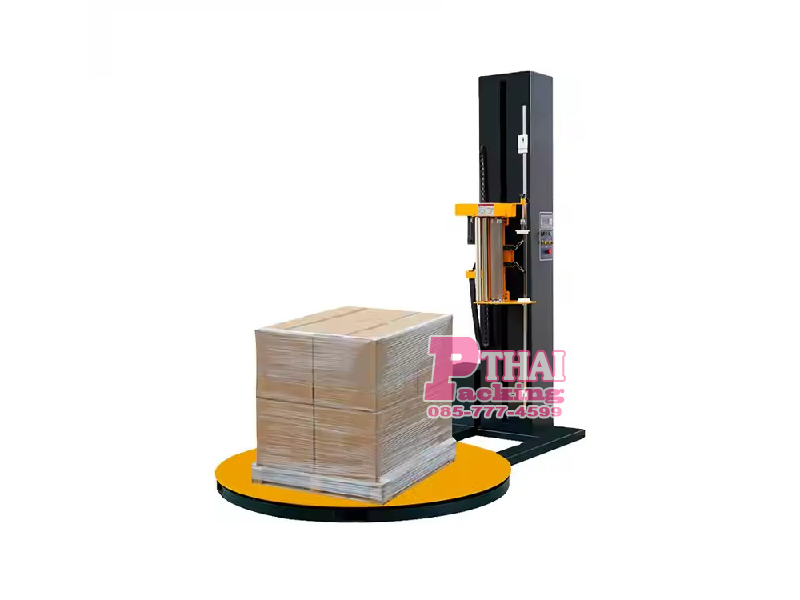

Automatic pallet wrapping machine
The stretch wrapping machine is used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported and stored to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified. The stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc.
| Model | TP1650F-L |
| Voltage | 220V50HZ |
| Wrapping size(L*W) | (500-1200)mm*(500-1200)mm |
| Packing height | L type:(500-2000)mm |
| H type: (500-2400)mm | |
| Y type: (500-higher than 2400)mm | |
| Packing efficiency | 20-40 loads/hour |
| Turntable speed | 0-12rpm |

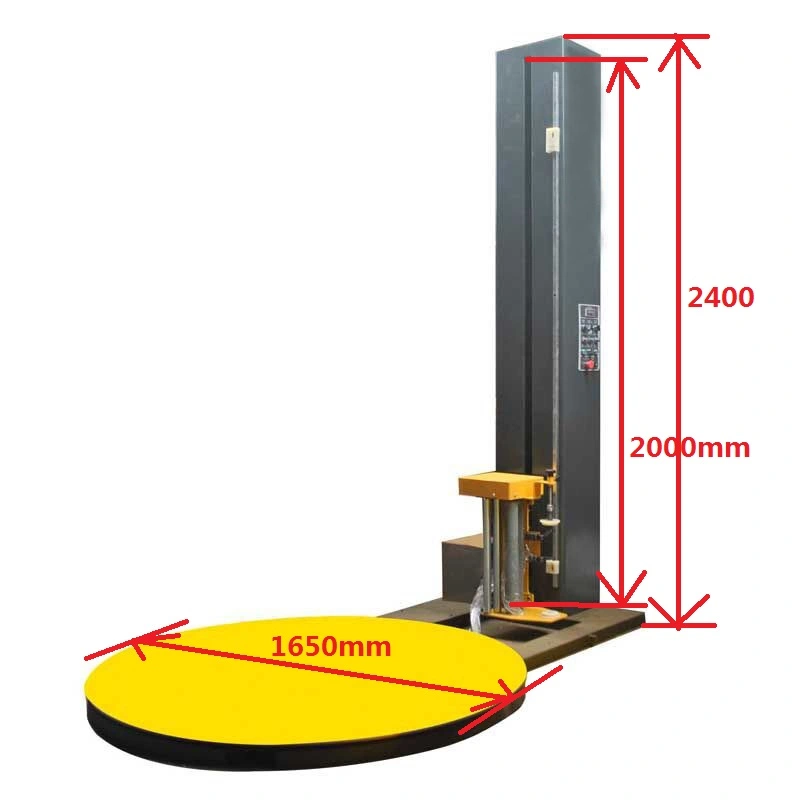

| Turntable diameter | Diameter:1650mm height:85mm |
| Turntable loading(max) | 2000kg |
| Up-down frame | Double-chain,Up-down speed variable |
| Film carriage | Pre-stretch |
| Control system | PLC |
| Machine weight(max) | 700kg |
| Machine size | 2650mm*1650mm*2400mm |
| Packing size | 2650mm*1650mm*2000mm |
| Electrics | Single-phase 220V/50Hz |
| Power | Turntable:0.75kw, film carriage:0.3kw,up-down:0.4kw |
