เครื่องอบฟิล์มหดอัตโนมัติ รุ่น DQL5545 – DSD4520
DQL5545 automatic L-type sealer characteristic：

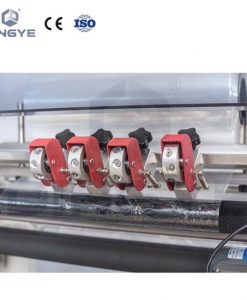

1. The sealing knife adopts copper alloy sprayed with teflon, it won’t stick film, sealing fastness, without smoke, non-pollution. Horizontal and vertical sealing knife adopt whole connecting without gap, the film won’t break. Sealing frame adopts high
quality alloy steel, the sealing quality is stable, frame difficult to be damaged.
2. The machine has entire automatical system, it equiped with sensors can reach high speed automatical working.
3. It is convenient to adjust according to different sizes products, just adjust the handle wheel can reach it, operation is easy.
4.it can be connected with production
5.it has protection function to avoid sealing product wrong and ensure the safety of operator
BS-D4520 shrink tunnel characteristic/ DSC4520 shrink tunnel(with visual window):
1 It adopts Schneider AC contactor, high-power Solid state booster and intelligent temperature controller to make
temperature system more accurate, prolong the working life.
2 It adopts solid roller conveyor, the rollers wrapped with high temperature silica gel tube. It can stand heavy product and difficult
abraded (you can choose net type conveyor)
3 It adopts high-power fan motor to ensure enough strong wind to reach perfect packing effect.
4 Inside wall adopts stainless steel, it has fast temperature transfer, even heating, low energy consumption, long working life
characteristics.
application：
This machine is widely used in foodstuff, drinks, printing, pharmaceutical, floor, hardware and other industries shrink packaging. It is
suit POF, PE, PVC and other packaging material
optional items：
1、inlet conveyor
2、connecting device (for packing small products)

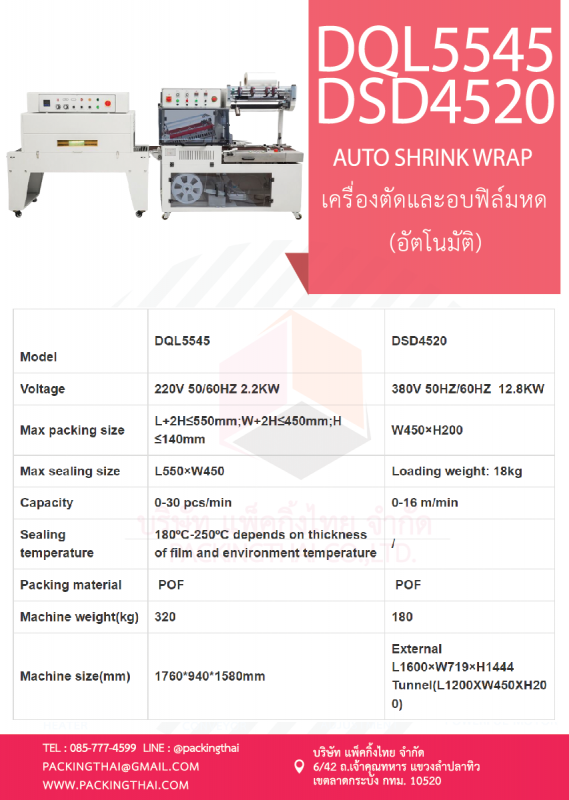

specification：
|
Model |
DQL5545 |
DSD4520 |
|
Max packing size（㎜） |
L+2H≤550,W+2H≤450,H≤130 |
W450×H200 |
|
Max sealing size（㎜） |
L550×W450 |
/ |
|
Power（KW） |
1.30 |
13 |
|
Capacity |
0-16m/min |
0-16m/min |
|
Voltage |
220V 50/60HZ |
380V 50/60HZ |
|
Sealing temperature |
180℃—250℃ depends on thickness of film and environment temperature |
/
|
|
Thickness of film (mm) |
0.015－0.10 |
0.015-0.10 |
|
Air pressure (Kg/cm2) |
5 |
5 |
|
Packing material |
POF PVC |
POF PVC |
|
Machine weight (kg) |
320 |
210 |
|
Machine size（㎜） |
L1700×W900×H1400 |
1600*700*1400 |
