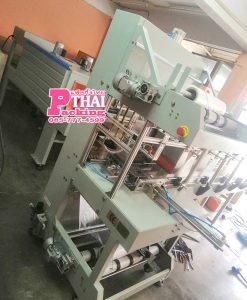

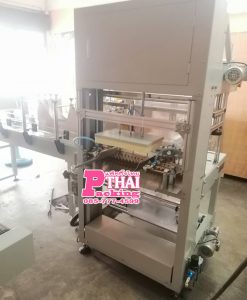

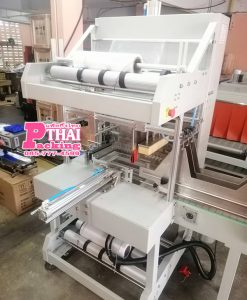

เครื่องห่อแพ็คโหลอัตโนมัติ รุ่น BSF-6030XI
เครื่องห่อแพ็คโหลอัตโนมัติ สำหรับห่อแพ็คโหลขวดน้ำดื่ม ใช้กับขวดน้ำดื่มได้หลากหลายขนาด
BSF-6030XI automatic sleeve film sealing and cutting machine is imported from foreign advanced technology and process, and the equipment performance is stable and reliable.
- Mitsubishi PLC programmable program controller is used to realize integration of light, machine, electricity and gas.
- The feeding conveyor can be designed to feed on the left or the right according to the needs of the site.
- Specially designed sealing knife, the sealing line is firm, not cracking, and not easy to stick to the knife; LFPOM material conveyor belt is resistant to wear and high strength.
- The machine can be used for two-, three-, and four-row heat shrinkable packaging with or without a bottom bracket. According to the production requirements, only the changeover switch on the panel needs to be changed.
- The worm gear reducer is used to ensure smooth and jitter-free feeding and film feeding.
- Vibration feeding device can be selected according to bottle shape.
- When packaging color film, add a full set of photoelectric detection to accurately position.
- Modular design, changing different bottle shapes can be completed instantly.
|Power supply voltage (V / Hz)||380/50 (3PH) 220/60 (3PH)|
|Use of air source (kg / cm³)||6-8|
|Packing speed (PCS / H)||0-12|
|Maximum packing size (L × W × H) (mm)||450 × 300 × 300|
|Sealing and cutting size (L × H) (mm)||700 × 330|
|Admission work horizontal height (mm)||880 ± 30|
|Applicable film||PVC, PE|
|Dimensions (L × W × H) (mm)||1360 × 2120 × 1900|
|Net weight (kg)||465|
